What Is M12 Splitter ?

The M12 splitter is a device commonly used in industrial environments to split M12 sensor connections. It allows distribution of power and signal from a single sensor output to multiple devices, reducing the need for additional wiring and simplifying installation. M12 separators are designed to withstand harsh environmental conditions and are available in various configurations to meet different application requirements. They are widely used in automation, manufacturing, and other industrial environments to simplify sensor connections and increase efficiency.

Types Of M12 Splitter

There are different types of M12 splitters that can be used for various applications, it names accord to the shape , like M12 T splitter , M12 Y splitter , M12 L splitter , T and Y M12 splitter can come with cables. CAZN can also provide up to 8 channel M12 splitters, welcome to customize.

Parameters :

Contact impedance : ≤5mΩ
Interface : M12
Sealing material : Epoxy resin/Rubber
Durability : ≥500 Cycles
Execution standard : IEC 61076-2-101
Insulator material : PA+GF/TPU
Applicable temperature : -25℃ ~ +80℃
Molding material:TPU/PVC

M12 Y Splitter Order code :

Y type M12 splitter looks like letter Y , 3 channel M12 adapter , A B D coded , have metal or plastic locking nut for option

A code 2 pin : 120097-02A
A code 3 pin : 120097-03A
A code 4 pin : 120097-04A
A code 5 pin : 120097-05A
A code 6 pin : 120097-06A
A code 8 pin : 120097-08A
B code 5 pin : 120097-05B
D code 4 pin : 120097-04D

M12 Y Splitter Picture :

12 T Splitter Order Code :

T type M12 splitter Looks like letter T , 3 chaneel M12 adapter , A B D coded , have metal or plastic locking nut for option

A code 2 pin : 120099-02A
A code 3 pin : 120099-03A
A code 4 pin : 120099-04A
A code 5 pin : 120099-05A
A code 6 pin : 120099-06A
A code 8 pin : 120099-08A
B code 5 pin : 120099-05B
D code 4 pin : 120099-04D

M12 T Splitter Picture

Panel Mount M12 Splitter Order Code :

M12 panel mount splitter is installed on a bulkhead , can be called M12 bulkhead splitter , could be male to female or female to male

A code 2 pin : 120010-02A
A code 3 pin : 120010-03A
A code 4 pin : 120010-04A
A code 5 pin : 120010-05A
A code 6 pin : 120010-06A
A code 8 pin : 120010-08A
A code 12 pin : 120010-12A
B code 5 pin : 120010-05B
D code 4 pin : 120010-04D

M12 Panel Mount Splitter Picture

M12 To M8 Splitter Order Code

T type M12 to M8 adapter : Looks like letter T , but one interface is M12 , the other 2 interface are M8 , A coded with 4 pin

M12 Side : A Coded 4 pin male

M8 Side : M8 3 pin female

Code : 12014-04A

M8 To M12 Splitter Picture

M12 T Splitter With Cable Order Code

T type M12 splitter can come with customized length cable , the cable jacket have PVC or PUR accord to different requirement.

A code 2 pin : 120103-02A
A code 3 pin : 120103-03A
A code 4 pin : 120103-04A
A code 5 pin : 120103-05A
A code 6 pin : 120103-06A
A code 8 pin : 120103-08A
A code 12 pin : 120103-12A
B code 5 pin : 120103-05B
D code 4 pin : 120103-04D

There have 6 letters behind the order code to determine the cable jacket and cable length , the first letter can be 1 or 2 , 1 stands for PVC cable , and 2 stands for PUR cable , the last 5 letters

stands for the cable length in mm, for example , A code 8 pin with 3M PUR cable : 120103-08A203000

The dimension of the T M12 splitter with cable is similar with the M12 T splitter .

M12 T Splitter With Cable Picture

M12 Y Splitter With Cable Order Code

M12 Y splitter with cable have different shape with M12 Y splitter , it has 2 cables , each cable length can be customized , and have PVC or PUR cable jacket , each end of the cable can have male or female M12 connector or leave it open .

Male A code 2 pin : 120044-02A
Male A code 3 pin : 120044-03A
Male A code 4 pin : 120044-04A
Male A code 5 pin : 120044-05A
Male A code 6 pin : 120044-06A
Male A code 8 pin : 120044-08A
Male B code 5 pin : 120044-05B
Male D code 4 pin : 120044-04D
Female A code 2 pin : 120043-02A
Female A code 3 pin : 120043-03A
Female A code 4 pin : 120043-04A
Female A code 5 pin : 120043-05A
Female A code 6 pin : 120043-06A
Female A code 8 pin : 120043-08A
Female B code 5 pin : 120043-05B
Female D code 4 pin : 120043-04D

There have 6 letters behind the order code to determine the cable jacket and cable length , the first letter can be 1 or 2 , 1 stands for PVC cable , and 2 stands for PUR cable , the last 5 letters

stands for the cable length in mm, for example , male A code 4 pin with 3M PUR cable : 120044-04A203000

Please note : we can see , these codes are for open cables , and the cable have to be same length and jacket , if you need the 2 cables have connectors , or each cable have different length or jacket, please contact our sales for the order code .

M12 Y Splitter With Cable Picture

L Shape M12 Splitter Order Code

M12 L Splitter looks like letter L ， it has 2 M12 connectors , female to female type .

A code 2 pin : 120102-02A
A code 3 pin : 120102-03A
A code 4 pin : 120102-04A
A code 5 pin : 120102-05A
A code 6 pin : 120102-06A
A code 8 pin : 120102-08A
B code 5 pin : 120102-05B
D code 4 pin : 120102-04D

M12 L Splitter Picture

M12 Splitter Pinout

Following coding chart is the M12 splitter pinout , A means A coded , B means B coded , C means C coded , D means D coded , all M12 splitters have 2-pin , 3-pin , 4-pin , 5-pin , 6-pin , 8-pin .

The 2-5 rows are for male , and 6-9 rows are for female .

M12 Splitter Wiring Diagram

Following chart shows 4 pin and 5 pin M12 splitter wiring diagram , not all M12 splitters have same wiring , it can be customized accord to different application , and if you want to know wiring diagram

for other M12 splitters , please contact our sales or ask for online service.

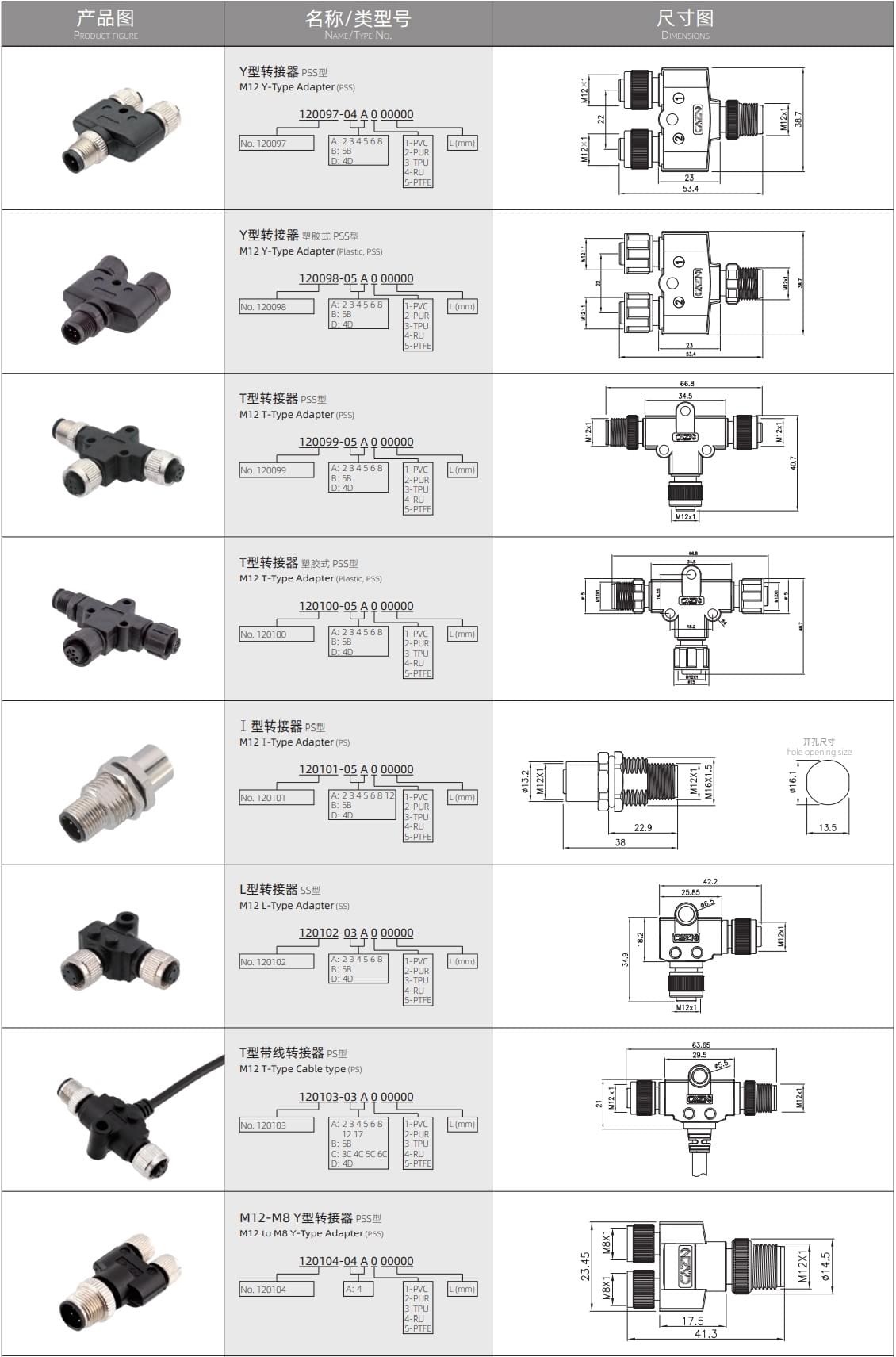

M12 Connector Whole Catalog

CAZN M12 Connector Catalog Download
