E7 connector male female assembly overmolded plug socket front back panel 2 3 4 5 pin |CAZN Factory

■ Place of Origin : Guangdong, China
■ Brand Name : CAZN
■ Model Number : E07
■ Type : DIN
■ Application : Automotive
■ Gender : Male & Female
■ Insert material : PPS
■ Shell Material : PA66
■ Pin : 2 3 4 5 6 pin
■ IP rating : IP67 IP68
■ Color : Black & Blue
■ Termination : Solder Terminal
■ Coupling : Bayonet
■ Contact material : Copper Gold Plated
■ Connector type : Circular Connectors
■ Certificate : ISO9001 CE ROHS REACH
Inquire Now
More Details

E7 Connector Parameters:

Specifications: 7/16"-28UNS U.S. standard screw

Widely used in LED display, monitoring, automation equipment and outdoor communication equipment

Pins number: 2 3 4 5 6 pin with big current

2 Coupling way: Threaded, Bayonet

Rich structure

Plug: Assembly type, Injection type

Socket: Front Mount , Back Mount , PCB Mount

Protection grade: IP67 , IP68

Shell material : Thermoplastic plastic PA66, flame retardant grade: V-0

Contact impedance : ≤5mΩ

Contact material : Brass/Phosphorus copper gold-plated

Durability : ≥50000 Cycles

Sealing material : Epoxy resin/Rubber

Insulation impedance : ≥100mΩ

Coupling : Thread (T) ; Bayonet (B)

Applicable temperature : -25℃ ~ +105℃

Termination way : Solder

Wiring range : 3.5mm~6.8mm

E7 Waterproof Overmolded Cable Connector Name And Order Rules

The first part:Series Type, each product has its part number on the album details page, and customers can choose according to the picture and part number; The second part:number of cores + interface model + wire + length. According to the following instructions, customers can fill in corresponding parameters as required to facilitate customization.

E7 Threaded Connector Male Female 2 3 4 5 6 Pin Front Back Mount Plug Socket Assembly Overmolded

E7 Bayonet Connector Assembly Overmolded Male Female Front Back Mount

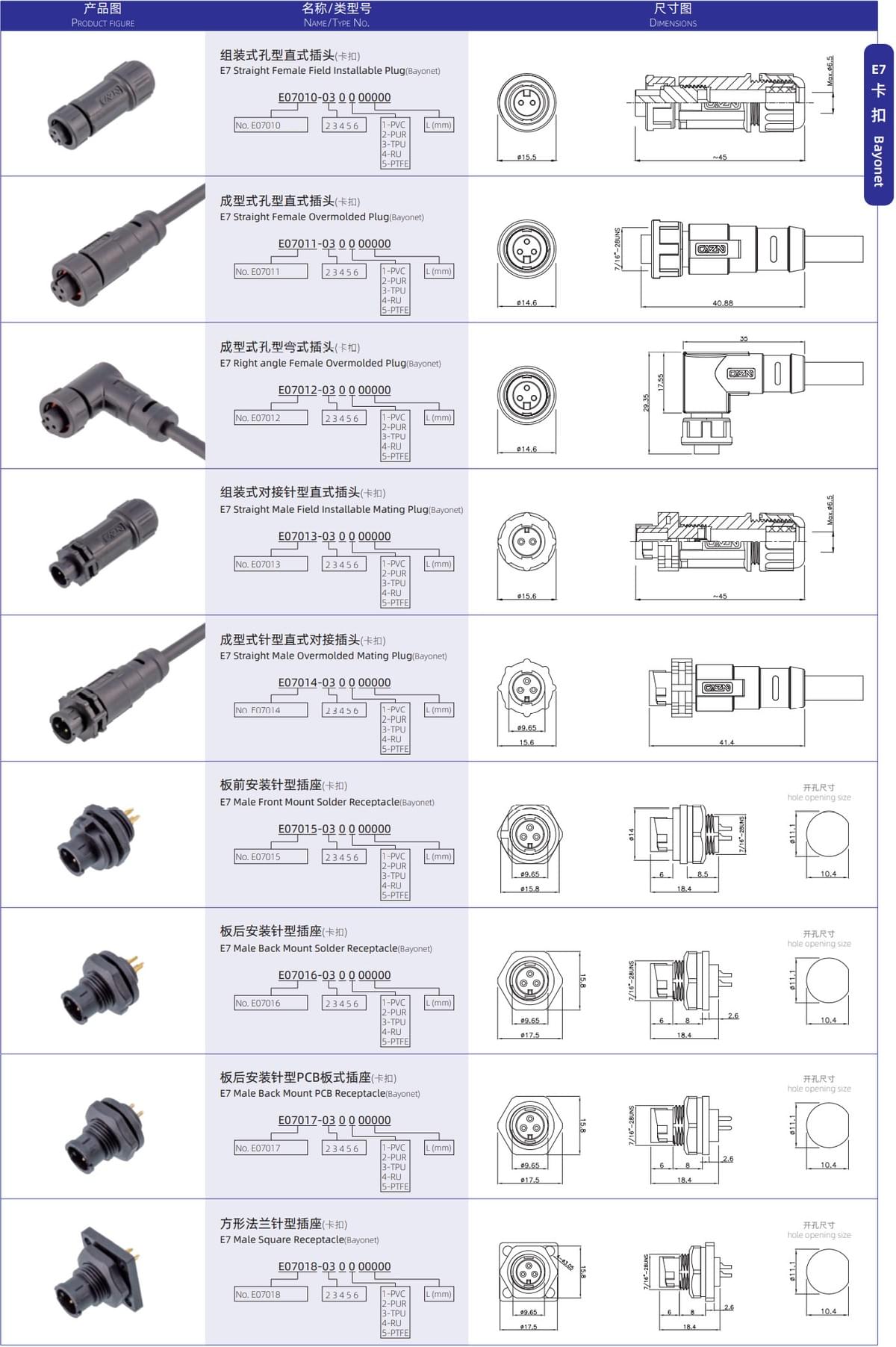

E7 Waterproof Connector PCB Pins Arrangement

E7 Waterproof Connector Electrical Parameters

Inquire Datasheet Of The E7 Waterproof Male Female Connector
